1.187,92 lei cu TVA
Prețul include TVA
În stoc – livrare în 1–2 săptămâni
The versatile design of the prefabricated one-piece cold shrink splice body allows installation on a wide range of cable sizes and types and a fast and easy installation at temperatures ranging from – 20°C to + 50°C.
The integrated, semi-conductive electrode forms a faraday cage over the connector and eliminates the use of tapes and void filling.
Solderless earth connection by means of copper screen sleeve and constant force springs.
No heat or flame is needed during splice body installation.
No special tools required for installation

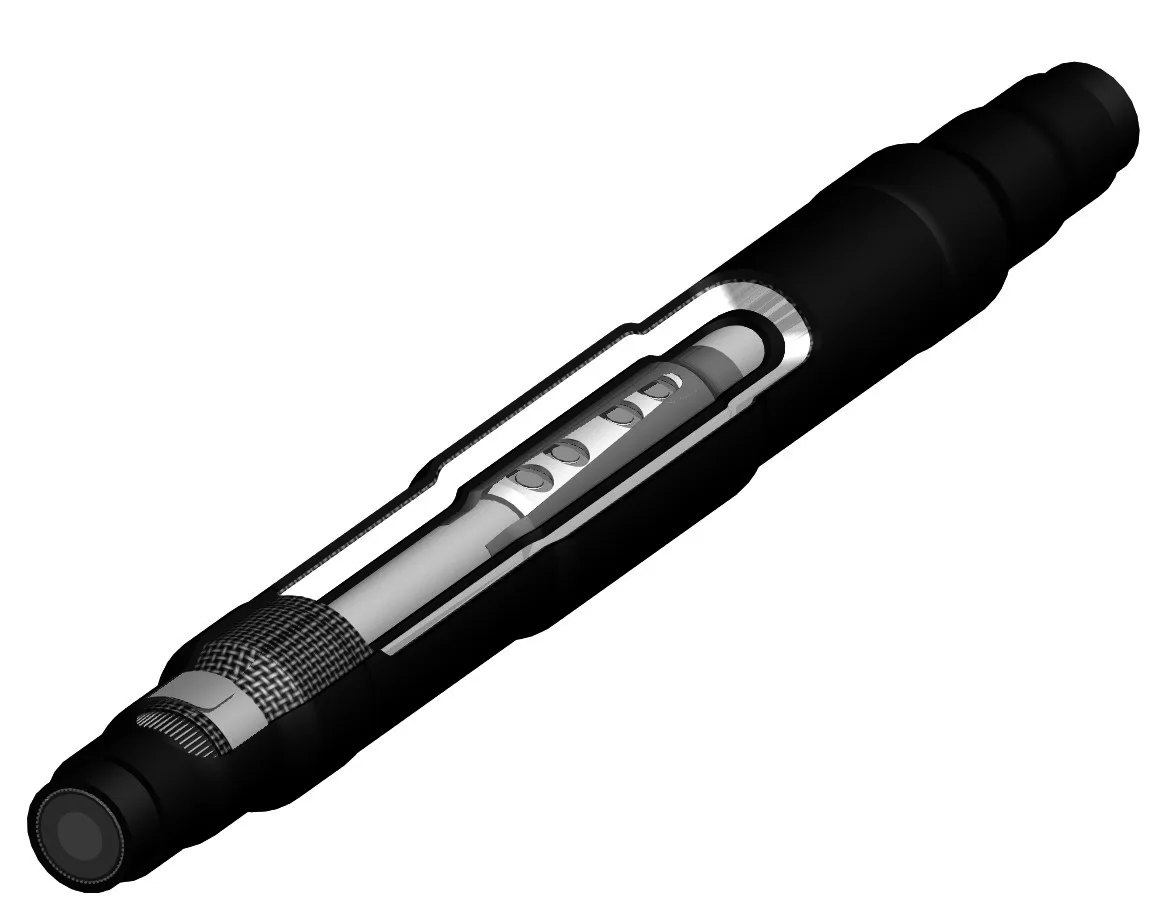

3M™ Cold Shrink Medium Voltage splice kit series QS200 93-AK xx0-1 are designed for inline splicing up to 24 kV Umax voltage class, to connect single core polymeric power cable systems with copper wire screen according to HD 620 (IEC 60502).
The 93-AK xx0-1 Inline Joint Series includes the Cold Shrink QS200 silicone splice body with integrated electrode, stress control device, silicone elastomer insulation and outer semi-conductive layer, supplied on a pre-stretched removable core for efficiency and ease of installation. Kits are supplied with copper screen sleeve, constant force springs and thick walled EPDM rubber Cold Shrink or Heat shrink outer rejacketing tubes. Kits can also be supplied with mechanical connector.
